Description
Autel Robotics EVO II Pro 6K RTK Rugged Bundle V3 | Professional-Grade Mapping, Imaging & Flight Control
The EVO II Pro 6K RTK Rugged Bundle V3 from Autel Robotics is built for professionals who demand centimeter-level accuracy, powerful imaging, and reliable performance in any environment. Equipped with a high-resolution 20MP 1″ CMOS sensor, integrated RTK module, and the robust Smart Controller V3, this drone is engineered for industries such as agriculture, construction, surveying, and public safety. Whether capturing detailed maps or cinematic visuals, the EVO II Pro delivers results with precision, flexibility, and safety.
Features:
- Level 8 wind resistance
- Up to 16x digital zoom and 3x lossless zoom
- Up to 38 minutes of flight time
- Maximum ISO of 44000
- Compatible with optional Live Deck 2 for broadcasting live mission intel
- Can be flown even if the firmware and app are not fully updated
- Without built-in fly zones, nothing prevents you from taking off when needed
Centimeter-Level Mapping
The integrated RTK module provides various industries, such as agriculture and construction, with centimeter-level positioning and mapping of large areas from the air. The module is capable of horizontal accuracy of 1 cm + 1 ppm and vertical accuracy of 1.5 cm + 1 ppm. Obtaining this data takes only (approximately) 3 minutes, but for complex and interference-prone areas, you can use the EVO II Pro with optional NTRIP RTK base stations and network to improve mapping accuracy and stability in data acquisition.
When using an NTRIP network, no GCP is needed, as the drone connects directly to the network. The drone records the original satellite observational data, camera exposure, and more, and it supports PPK post-processing to adjust the accuracy of your collected data.
Autel Explorer for Mapping
With Autel Explorer, you can use the EVO II Pro V3 drone to complete mapping missions using a variety of features and functions.
- Multi-NTRIP profile saving: This allows the drone to restart a mission after a battery change from where it left off.
- Photo replication: You can save all of the gimbal, camera, and drone movements, producing a full record of a mission that can then be repeated.
- Multi-battery missions: Create and save multiple NTRIP profiles for different locations without having to manually input account info for each flight.
- Create rectangular or polygon mapping missions
- Supports double grid mapping for additional angles
- Gain complete manual control over camera settings
- Nonstop turning on corners saves time and battery life
- Customizable course headings to meet orientation requirements
Smart Controller V3 with SkyLink 2.0
Utilizing SkyLink 2.0, the Smart Controller V3’s built-in 7.9″ display can receive HD video transmission in flight from up to 9.32 miles away (or QHD quality from up to 0.62 miles away). Reception is engineered to be stable and interference-free, thanks to triple-band (900 MHz, 2.4 GHz, and 5.8 GHz) frequency-hopping. Thanks to the display’s 2000 cd/m² of brightness, you can easily view the drone’s footage, even in direct sunlight. You’re not restricted to flying on sunny days though. The Smart Controller V3 can withstand -4 to 104°F temperatures and is IP43-rated for all-weather performance.
360-Degree Obstacle Avoidance
While in flight, an array of 19 sensors, including 12 visual sensors, the main camera, ultrasound IMUs, and more, can build a 3D map of the drone’s surroundings and plan a clear path to its destination in real time.
The EVO II Pro 6K RTK Rugged Bundle V3 is the ultimate all-in-one solution for professionals who need precision mapping, cinematic imaging, and reliable flight performance in any field environment.

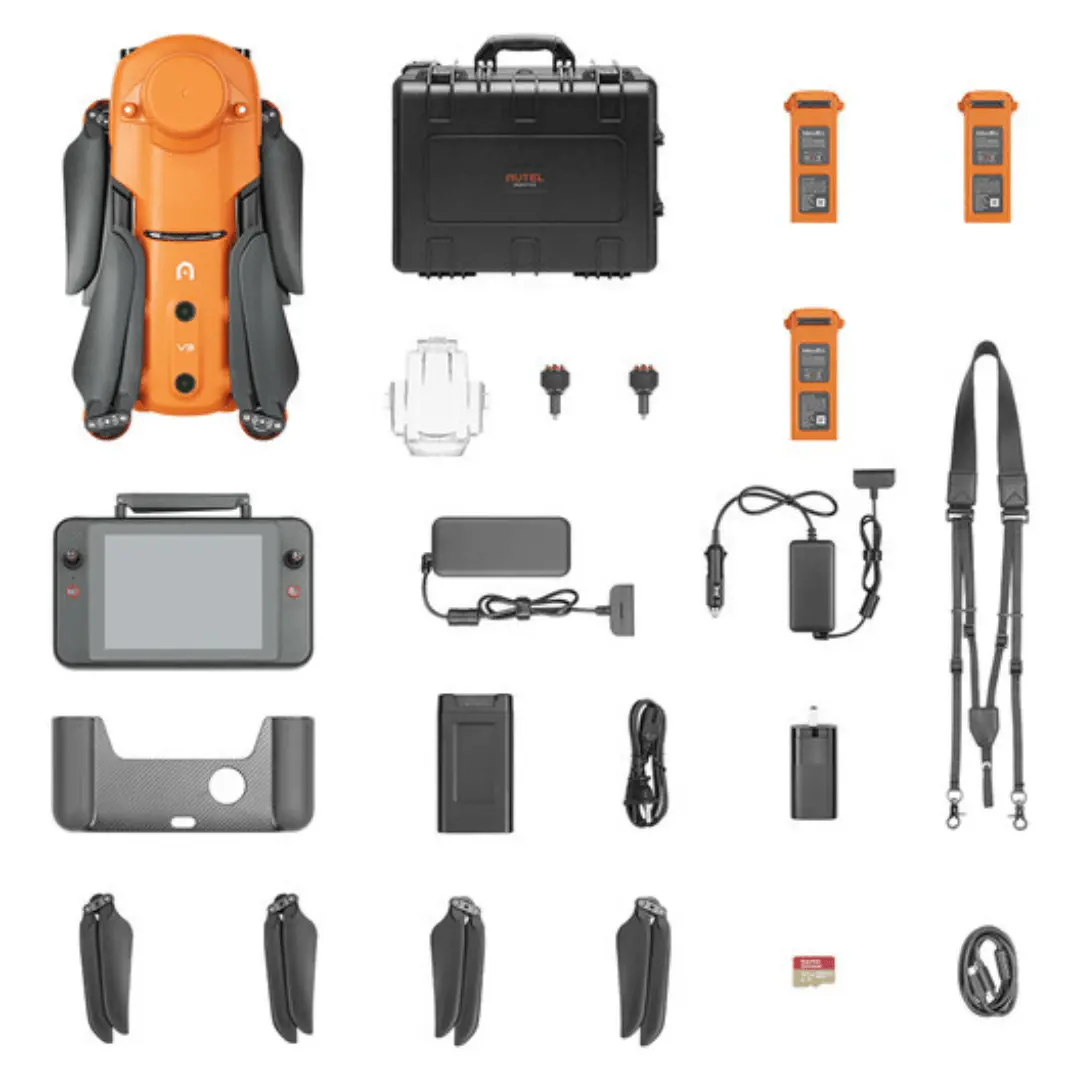

In the Box
1 – Aircraft
1 – Smart Controller V3
3 – Battery
1 – RTK Module
1 – Gimbal Cover
1 – Pair of Spare Propellers
1 – Smart Controller USB-C Charging Cable
1 – Smart Controller Power Brick
1 – Pair of Spare Controller Sticks
1 – 32GB SD Card
1 – Smart Controller Hanging Neck Strap
1 – RTK Module Attachment Port Cover
1 – Battery Charger with Power Cord & Converter
1 – Battery Car Charger
1 – Battery Multi-Charger
Specifications
| Maximum Flight Time | 36 Minutes |
| Remote ID | Yes |
| Camera System | 20 MP, 1″-Type CMOS Sensor with 29mm-Equivalent, f/2.8 Lens (82° FoV) |
| Maximum Video Resolution | Up to 6K at 30 fps / UHD 4K at 60 fps |
| Still Image Support | Up to 20 MP (JPEG / DNG) |
| Sensing System | Omnidirectional with Ultrasonic Enhancement |
| Control Method | Included Transmitter |
| Weight | 2.6 lb / 1187 g (Takeoff) 4.4 lb / 2000 g (with Maximum Payload) |
Performance
| Maximum Horizontal Speed | 44.7 mph / 71.9 km/h |
| Maximum Ascent Speed | 17.9 mph / 28.8 km/h |
| Maximum Descent Speed | 8.9 mph / 14.3 km/h |
| Maximum Wind Resistance | 39 mph / 62.8 km/h |
| Maximum Take-Off Altitude | 4.3 Miles / 7 km |
| Maximum Flight Time | 36 Minutes |
| Maximum Hover Time | 35 Minutes |
| Maximum Tilt Angle | 33° |
| Hovering Accuracy | Vision Positioning Vertical: ±0.3′ / 0.1 m Horizontal: ±1.0′ / 0.3 m RTK Vertical: ±0.3′ / 0.1 m Horizontal: ±0.3′ / 0.1 m GNSS Vertical: ±1.6′ / 0.5 m Horizontal: ±4.9′ / 1.5 m |
| Maximum Angular Velocity | 120°/s (Pitch) |
Aircraft
| Rotor Configuration | Quadcopter |
| Remote ID | Yes |
| Aircraft I/O | 1x USB-C (Data) |
| Operating Conditions | 14 to 104°F / -10 to 40°C |
Imaging
| Number of Cameras | 1 |
| Camera System | 20 MP, 1″-Type CMOS Sensor with 29mm-Equivalent, f/2.8 Lens (82° FoV) |
| Zoom | 16x Optical |
| Minimum Focus Distance | 1.6′ / 0.5 m |
| ISO Sensitivity Range | Photo: 100 to 6400 Video: 100 to 44,000 |
| Night Vision | No |
| Shutter Speed | 1/8000 to 8 Seconds (Photo) 1/8000 to 1 Seconds (Video) |
| Maximum Video Resolution | Up to 6K at 30 fps / UHD 4K at 60 fps |
| Still Image Support | Up to 20 MP (JPEG / DNG) |
| Photo Modes | Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot |
| Media/Memory Card Slot | In Aircraft Body microSD/microSDHC/microSDXC [256 GB Maximum / U3/V30 or Faster Recommended] In Remote/Transmitter microSD/microSDHC/microSDXC |
| Internal Storage | In Aircraft Body 8 GB In Remote/Transmitter 128 GB |
Gimbal
| Number of Axes | 3: Pitch (Tilt), Roll, Yaw (Pan) |
| Rotation Range | Controllable Range Yaw (Pan): 180° (-90 to 90°) Pitch (Tilt): 120° (-90 to 30°) Mechanical Range Yaw (Pan): 200° (-100 to 100°) Pitch (Tilt): 180° (-135 to 45°) |
| Follow Speed | Tilt: 300°/s |
| Stabilization Accuracy | ±0.005° |
Avoidance/Sensing System
| Sensing System | Omnidirectional with Ultrasonic Enhancement |
| Sensing System Capabilities | Forward Measurement Range: 1.6 to 59.1′ / 0.5 to 18 m Max Speed: 26.8 mph / 12 m/s Field of View: 60° (Horizontal) / 80° (Vertical) Backward Measurement Range: 1.6 to 52.5′ / 0.5 to 16 m Max Speed: 26.8 mph / 12 m/s Field of View: 60° (Horizontal) / 80° (Vertical) Lateral Measurement Range: 1.6 to 32.8′ / 0.5 to 10 m Max Speed: 11.2 mph / 5 m/s Field of View: 65° (Horizontal) / 50° (Vertical) Upward Measurement Range: 1.6 to 32.8′ / 0.5 to 10 m Max Speed: 11.2 mph / 5 m/s Field of View: 65° (Front-to-Back) / 50° (Side-to-Side) Downward Measurement Range: 1.6 to 32.8′ / 0.5 to 10 m Max Speed: 11.2 mph / 5 m/s Field of View: 100° (Front-to-Back) / 80° (Side-to-Side) |
Remote Controller / Transmitter
| Control Method | Included Transmitter |
| Transmission System | Proprietary 900 MHz / 2.4 GHz / 5.1 GHz / 5.8 GHz Power at 0.9G: 33 dBm (FCC) Power at 2.4G: 20 dBm (CE/SRRC) Power at 5.8G: 33 dBm (SRRC) / 14 dBm (CE) |
| Maximum Operating Distance | 9.3 Miles / 15 km |
| Transmitter I/O | 1x USB-A Output (Power) 1x USB-C (Power) 1x HDMI Output (Video) |
| Clean Video Output | No |
| Battery Type | Built-In Lithium-Ion Polymer (LiPo) (5800 mAh) |
| Operating Temperature | -4 to 104°F / -20 to 40°C |
| Mobile App Compatible | Yes: Android & iOS App Name: Autel Explorer |
| Built-In Display | 7.9″ (2048 x 1536) Touchscreen LCD, 2000 nits/ cd/m2 |
Flight Battery
| Battery Chemistry | Lithium-Ion Polymer (LiPo) |
| Battery Capacity | 7100 mAh / 82 Wh |
| Battery Configuration | 3 S / 11.55 V |
| Maximum Charging Power | 93 W |
| Charging Temperature | 41 to 113°F / 5 to 45°C |
| Weight | 12.9 oz / 365 g |
Charger
| Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A |
| Output Voltage | 13.2 V, 5 A 12 V, 1.5 A 9 V, 2 A 5 V, 3 A |
| Power Rating | 66 W |
General
| GNSS Support | GPS, GLONASS, BeiDou, Galileo |
| Diagonal Size | 15.6″ / 397 mm |
| Overall Dimensions | 5.1 x 4.3 x 9.1″ / 130.0 x 108.0 x 230.0 mm (Folded) 22.0 x 4.3 x 18.0″ / 558.0 x 108.0 x 457.0 mm (Unfolded) |
| Weight | 2.6 lb / 1187 g (Takeoff) 4.4 lb / 2000 g (with Maximum Payload) |
Packaging Info
| Package Weight | 21.15 lb |
| Box Dimensions (LxWxH) | 21.7 x 18.2 x 10.4″ |
