Description
About the Product
- For use with Brembo Rear Master Cylinders
Technical Specifications- Piston Size 11mm
- Lever Ratio 16mm
- Standard Lever
- Rear positioning
- Axial mounting
- For single disc
- CNC Aluminum Construction
- Hard Anodized
- Weight 175 grams
- Microswitch not included
- Brake fluid to be used is DOT4 Brembo
-
Brembo P/N: X98.57.70

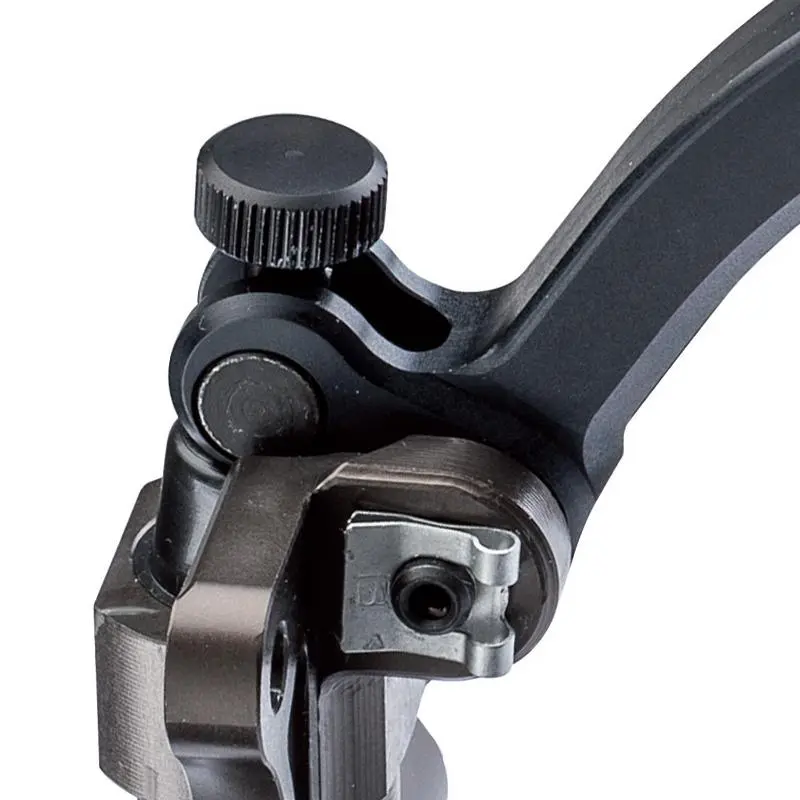

Billet machined rear master cylinder created to meet particular braking needs. The billet machining, which uses sophisticated numerically controlled equipment, provides maximum lightweight values thanks to optimum machining tolerances and a higher general product quality, both intrinsically and aesthetically, all to ensure excellent performance of the entire braking system.
To mount this particular type of brake master cylinder a custom bracket is required.
Designed for the Racing world, this brake master cylinder is controlled by the rider’s left thumb and uses a 11 mm diameter piston and has a lever centre distance of 16. The lever type is STD.
This Component is designed and manufactured to be used exclusively in racing competitions and, therefore, the product shall be installed through specific adaptors not included in the packaging of the component and by highly qualified and competent professionals working in the “racing” field. Please contact our distributor for any further clarification.
| TECHNICAL FEATURES | |
|---|---|
| Material | Billet aluminium |
| Ø Piston mm | 11 |
| Lever ratio | 16 |
| Lever type | |
| Single/double disc | SINGLE |
| Surface protection | Hard anodized |
| Weight (gr) | 175 |
| Brake light micro-switch | No |
| Handlebar fixing Ø (mm) | N.A |
| Note | Left side only |
