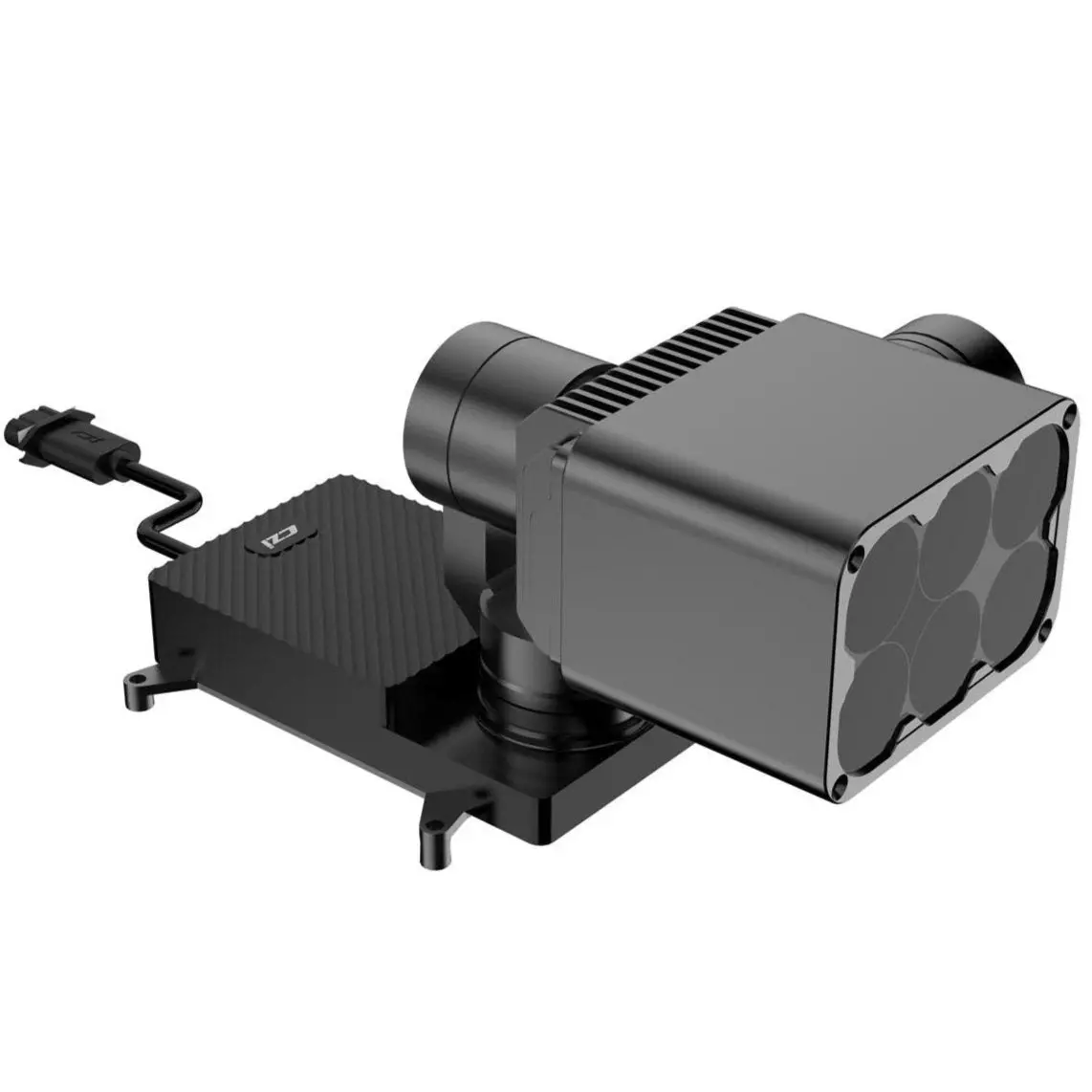

CZI GL60 Compact Gimbal-Mounted Searchlight for DJI M30 Series

Description

The CZI GL60 Mini Gimbal Searchlight is a powerfully lighting solution specially designed for the DJI Matrice 30 Series.

With 3-axis gimbal technology, AI Follow capabilities, and a 150m effective illumination range, this searchlight is perfect for search and rescue operations or inspections.

Features:

• Spot diameter up to 366 ft²
• Central illuminance up to 60 lux
• 13° field of view

Compatibility

DJI Matrice 30 Enterprise

In the Box

1 – CZI GL60 Mini Spotlight/Searchlight for DJI Matrice 30 Series

Specifications

Electrical Interface: DJI OSDK
Weight/g: 240
Size/mm: L158 * W87 * H82
Total Power/W: 65
LED Power/W: 60
Supply Voltage/V: 24
Luminous Flux/lm: 7000 ± 3%
FOV/°: 13
Illumination Distance/m: 150 100 50
Spot Diameter/m: 34 22.8 11.4
Illumination Area/m2: 917 407 102
Central Illuminance/Lux: 7 (Technically) 16 (Technically) 60 (Technically)
Gimbal Rotation and Design Range
Range of Rotation:

• Pitch: -70° ~ +90°
• Horizontal: ±125°

Design Range of Gimbal:

• Pitch: -70° ~ +90°
• Horizontal: ±125°
• Roll: ±125°

Operating Temperature

• -20°C ~ +50°C
