Description

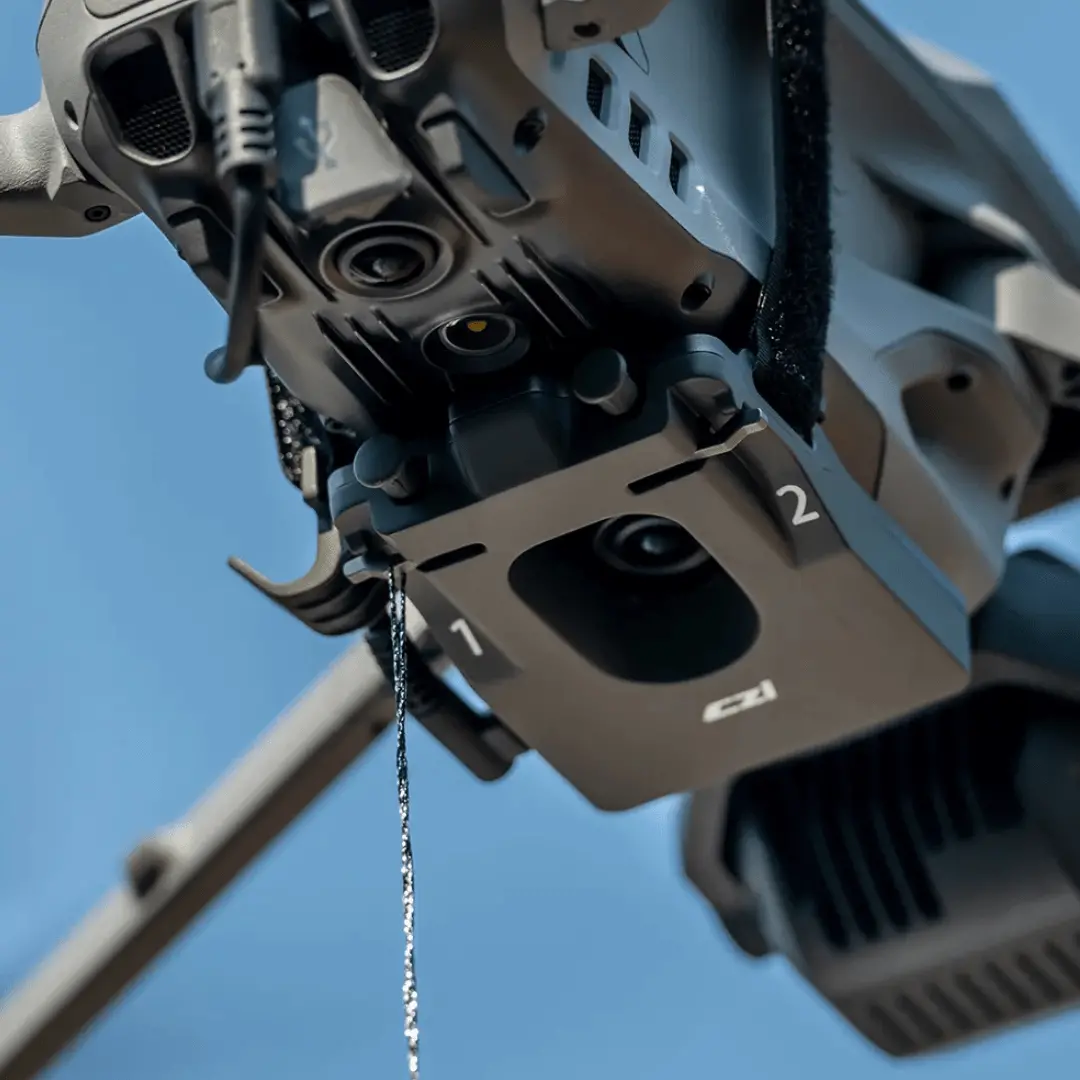

The CZI TH2 is a lightweight and efficient throwing hook/drop system purpose-built for the DJI Matrice 4. The TH2 installs quickly and is automatically recognized through the DJI Pilot App, eliminating the need for a third-party controller. Its two-stage dropping system allows precise sequential delivery of small items and emergency supplies. Suitable for a variety of industrial, rescue, and recreational missions, the TH2 is versatile enough for both routine and urgent deployments.
Features:
- Compatible with DJI Matrice 4
- Electrical interface via DJI Skyport V2.0
- Fast and easy installation
- Quick loading and deployment of supplies
- No third-party controller required
- Automatic recognition in DJI Pilot App
- Live message pop-up tips window
- Optimized workflow to reduce failure rate
- Multiple exception handling mechanisms
- Designed to help prevent safety incidents
Light Sensory Smart Control | One-Button Delivery
- Linked with the drone’s belly fill-in light
- First delivery triggered when the light is turned on
- Second delivery triggered when the light restarts
- Improves task execution efficiency and accuracy
Dual Hook Mount | Flexible Adaptability
- Single-hook mode: maximum load 500 g
- Dual-hook mode: each hook up to 300 g
- Items are dropped sequentially based on hook number
The CZI TH2 Throwing Hook for Lightweight, Smart Delivery
In the Box
1 – CZI TH2 Throwing Hook
User Manual
CZI 1 Year Limited Warranty
Specifications
Model: TH2
Outline dimension (before throwing): L:96.63 x W:63.3 x H:19.3mm
Outline dimension (after throwing): L:93.63 x W:59.0 x H:28.6mm
Material: PC+ABS,Aluminum alloy
Installation mode: Quick release
Total weight/g: 63± 2g
Control: Belly fill-in light triggers photoresistor
Rated voltage / V: 5V
Rated current/ A: 2A
Operating environment:
- Temperature：-20°C ～+50°C
- Humidity：15% ～ 95%
Storage environment:
- Temperature：-20°C ～+60°C
- Humidity：15% ～ 9
Service life: ≤3 years
Packaging: Soft color carton + EPE foam lining
Recommended throw rope length: 1m
