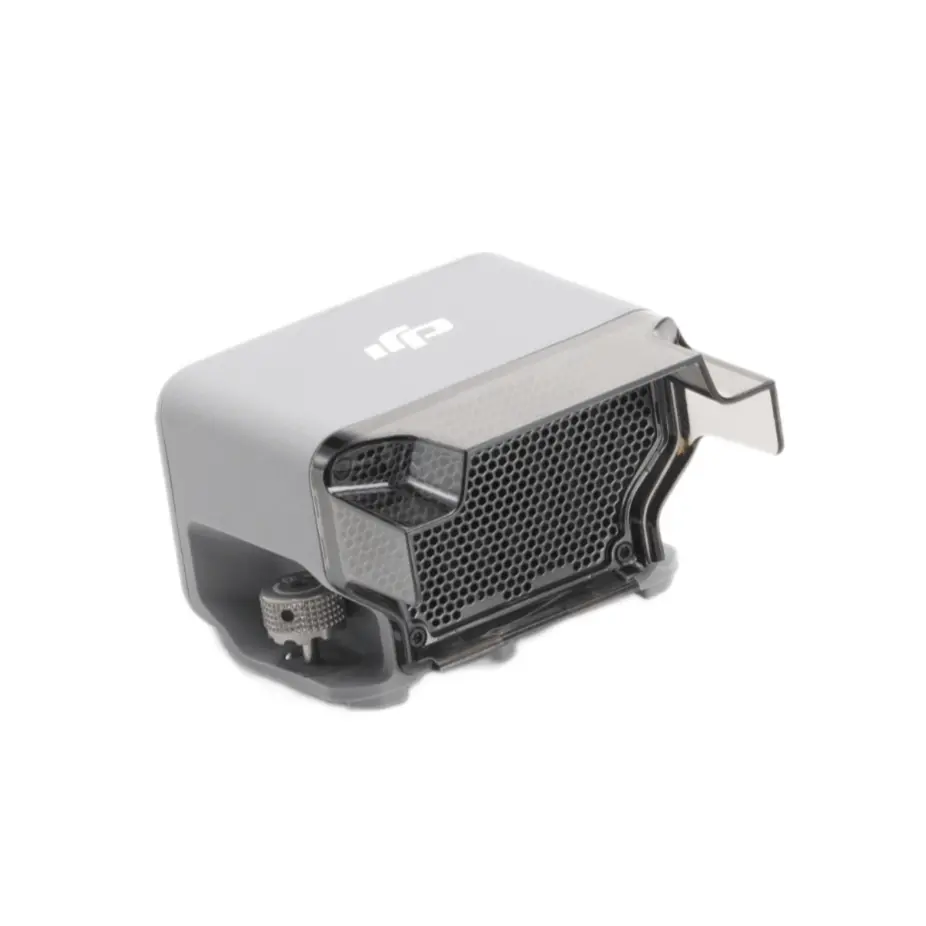

DJI Matrice 4 Series AS1 External Speaker Module

Description

DJI Matrice 4 Series AS1 Speaker | Louder Volume, Further Reach

The DJI Matrice 4 Series AS1 Speaker can reach 114 decibels at 1 meter, with a broadcast range of up to 300 meters. It supports recorded messages, media imports, and text-to-speech conversion.

Additionally, the AS1 features real-time broadcasting and echo suppression and can be used independently or in combination with the DJI Matrice 4 Series AL1 Spotlight, adapting seamlessly to diverse operational scenarios.

Compatibility

DJI Matrice 4 Series

Applications

• Public Safety & Search and Rescue
• Inspection and Maintenance
• Surveillance and Security

In the Box

1 – DJI Matrice 4 Series AS1 Speaker

1 – Spare Adapter Bracket

1 – Hex Key

Tips

• Tighten the screws to ensure secure installation. When installing on the aircraft for long-term use, use the included hex key to tighten the screws again after installation.
• When using the speaker and spotlight together, please remove the speaker adapter bracket.
• Activate the speaker and calibrate the aircraft compass following the app prompts after installation. If a firmware update is available, please upgrade to the latest version promptly.
• DO NOT use the speaker near people or in an urban area where noise-sensitive structures are concentrated, as the loudness could lead to accidents or injuries.
• It is not recommended to play single-frequency sounds to avoid irreversible damage to the speaker.

Specifications

Weight:

• 92.5 g (including bracket）
• Approx. 90 g (excluding bracket)

L×W×H, including bracket:  73×70×52 mm

L×W×H, without bracket:  73×70×47 mm

Max Power:  15 W

Max Volume:  At 1 meter, it can reach 114 decibels (114dB@1m)

Effective Broadcast Range:  300 m

Broadcast Modes:  Real-time broadcasting (supports echo suppression), recorded broadcasting, media import (supports simultaneous transmission and playback), text-to-speech.

Operating Temperature:  -4° to 122° F (-20° to 50° C)

Mounting Method:  Quick-release hand-tightened screws
