Description

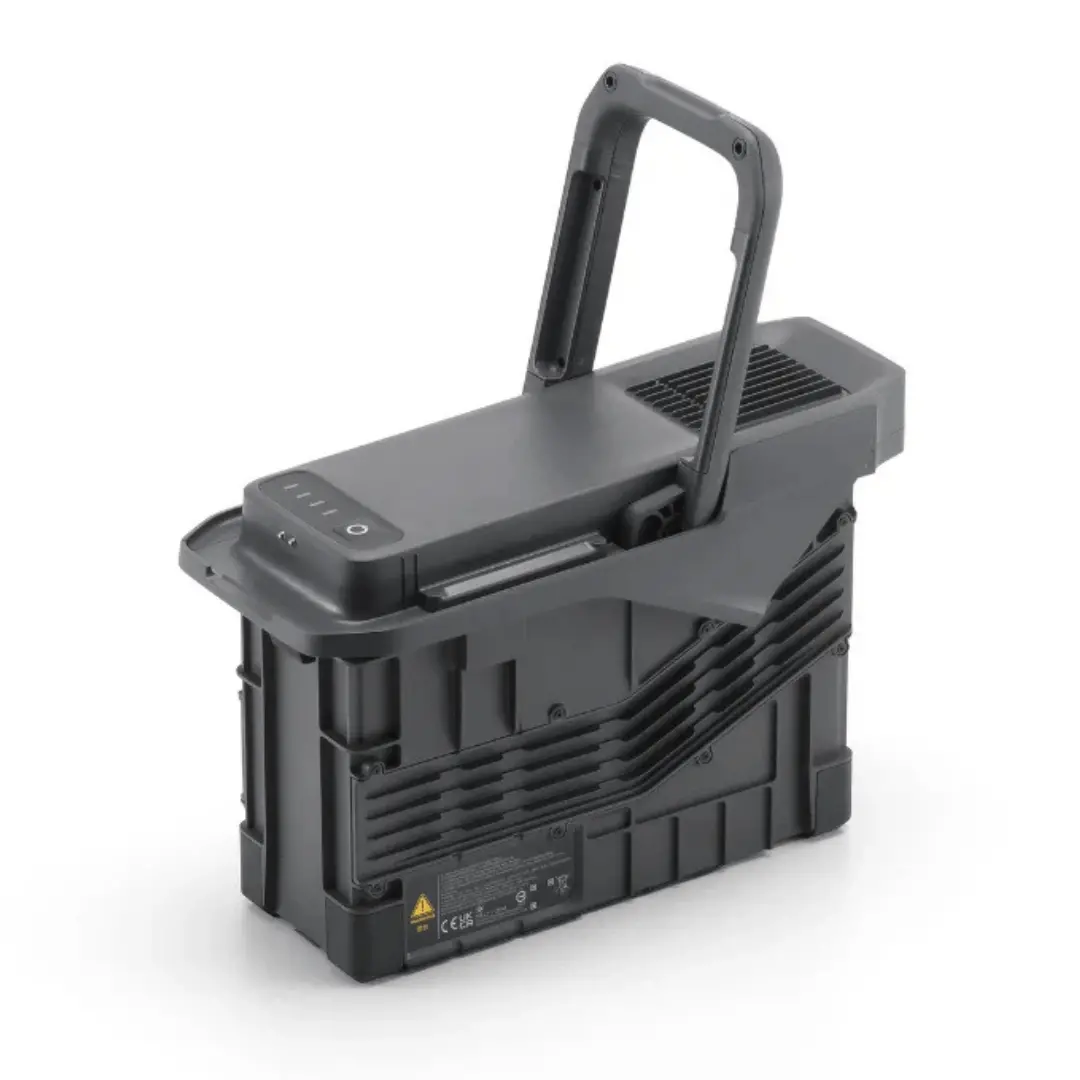

The DJI TB100 Intelligent Flight Battery (PI965 IA) is a high-capacity battery featuring a top-insert design and an upgraded handle for fast, secure mounting and removal. Purpose-built for the DJI Matrice 400, it supports hot-swapping with integrated capacitors that maintain power for up to 45 seconds, preserving satellite connections and enabling rapid mission restarts without the need for GPS reacquisition.
Compatibility
DJI Matrice 400
In the Box
1 – DJI Matrice 400 TB100 Intelligent Flight Battery (PI965 IA)
Specifications
| Model | TB100 |
| Capacity | 20254 mAh |
| Standard Voltage | 48.23 V |
| Max Charging Voltage | 54.6 V |
| Cell Type | Li-ion 13S |
| Energy | 977 Wh |
| Weight | 4720 ± 20 g (approx 10 lbs) |
| Charging Temperature | 5° to 45° C (41° to 113° F) |
| Discharging Temperature | -20° to 75° C (-4° to 122° F) |
| Battery Heating | Single Battery: Support<br> Onboard: Support<br> Battery Station: Support |
| Discharge Rate | 4C |
| Max Charging Power | 2C |
| Low-Temperature Charging | Supports low-temperature self-heating charging |
| Cycle Count | 400 |
