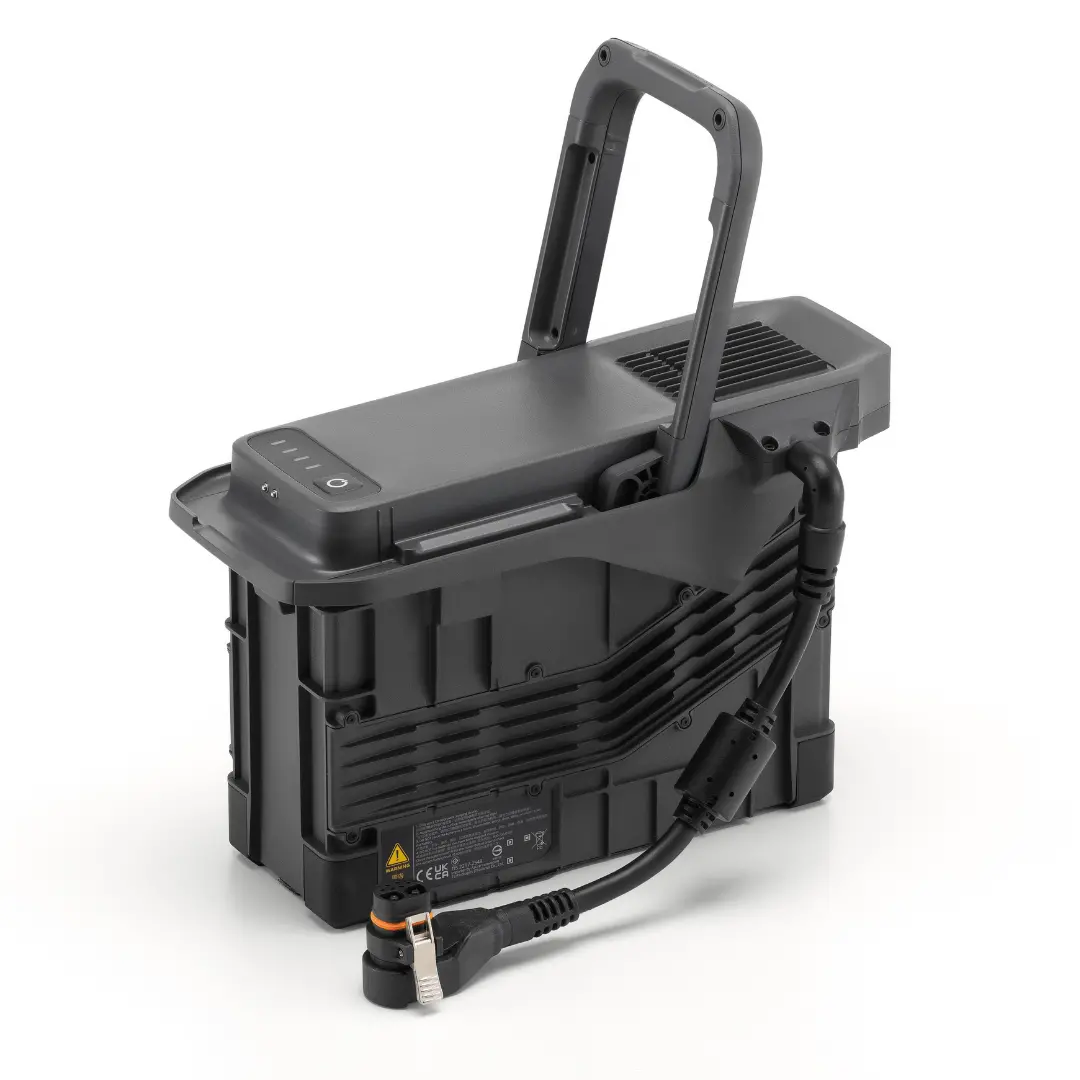

DJI Matrice 400 TB100C Tethered Power Supply

Description

The DJI Matrice 400 Tethered Battery delivers continuous power through third-party ecosystem power supplies, enabling long-duration flight and extended mission time. With a 20,254 mAh capacity, 977 Wh energy, and support for in-box charging via the BS100 Battery Station, it’s ideal for tethered operations requiring high endurance and efficiency.

Compatibility

DJI Matrice 400

In the Box

1 – DJI Matrice 400 TB100C Tethered Battery

Specifications

Capacity:  20254 mAh
Standard Voltage:  48.23 V
Max Charging Voltage:  54.6 V
Battery Type:  Li-ion 13S
Energy:  977 Wh
Net Weight:  Approx. 4.72 kg (10.4 lbs)
Operating Temperature:  –4 °F to 122 °F (–20 °C to 50 °C)
Charging Temperature:  41 °F to 113 °F (5 °C to 45 °C) (self-heating activates < 5 °C)
Discharging Temperature:  –4 °F to 122 °F (–20 °C to 75 °C)
Self-Heating:  Onboard • Battery Station • Single-battery modes supported
Discharge Rate / Max Charge Power:  4 C discharge | 2 C charge
Cycle Life:  ≈ 400 cycles
Charging Time:  45 min (220 V, Fast) | 70 min (110 V, Fast) | 110 min (Silent)
Tethered Support:  Compatible with approved third-party power-over-cable systems; includes reserved ports for dock integration
