Description

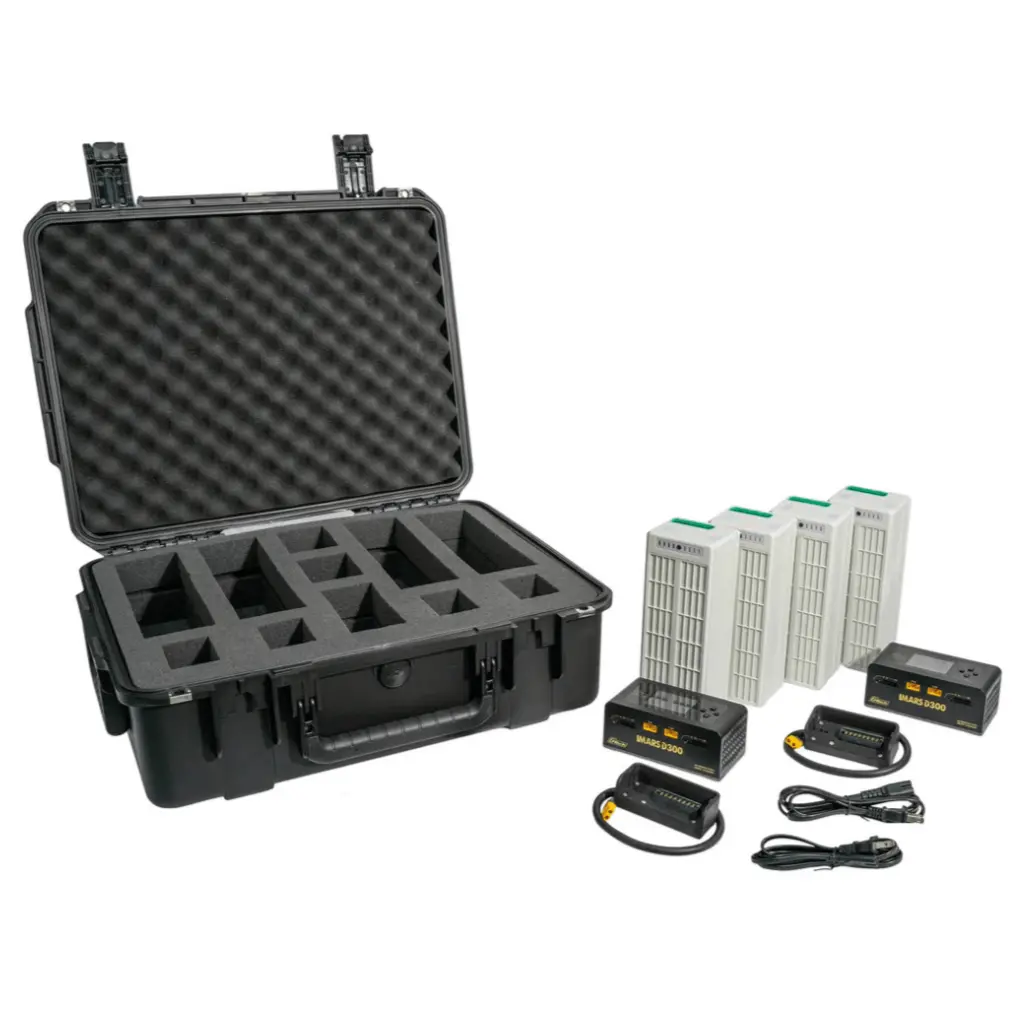

his comprehensive Inspired Flight IF800 Tomcat Quadcopter Battery Kit includes two complete sets of high-capacity batteries (four batteries in total) specifically engineered for the IF800 Tomcat Quadcopter. In addition, the kit features two advanced smart chargers, ensuring your batteries are always ready for action.
Features
- Comprehensive kit with four IB388 batteries
- Two smart chargers to keep batteries ready
- Hot-swappable design for uninterrupted operations
- Internal cell balancing and health monitoring
- Cycle tracking and NFC communication for detailed reporting
- Includes AC power cords and charging cables
- Protective hard case for durability and convenience
Compatibility
Inspired Flight IF800 Tomcat Quadcopter
In the Box
4 – IB388 Intelligent Batteries
2 – IF800 Charger
2 – AC Power Cords
2 – IF800 Charging Cables
Protective Hard Case
Specifications
| Battery Chemistry |
Lithium Polymer High-Voltage (LiHv) |
| Battery Configuration |
6 Series, 1 Parallel, Internal BMS |
| Nominal Energy |
387.6 Watt-Hours |
| Nominal Capacity |
17,000 mAh |
| Nominal Voltage |
22.8 Volts |
| Max (100% Capacity) Voltage |
26.1 Volts |
| Normal Min Voltage (1% Capacity) |
21.0 Volts |
| Minimum Safe Voltage |
19.8 Volts |
| Max Continuous Discharge |
40 Amps |
| Max Burst Discharge |
55 Amps |
| Max Charge Current |
17 Amps (1C) |
| Cut-Off Charge Current |
18 Amps |
| Max Charge Voltage (Charger Regulated) |
26.1 Volts (4.35v/Cell) |
| Cut-Off Charge Voltage (BMS Regulated) |
4.38v/Cell |
| Cell Balancing |
Controlled by BMS (<0.01v) |
| BMS Self Discharge |
To 3.8v/Cell after 48 Hours |
| Dimensions |
74 x 89 x 228 mm |
| Ambient Operating Temperature |
-10 to 45°C |
| Max Internal Temperature |
70°C |
| Storage Temperature |
10°C to 40°C |
| Life Expectancy |
150 Cycles |
| Long Term Storage |
Cycle once every 3 months |
| Status Connectivity |
Available over NFC |
