The Sentinel Docking System | Autonomous. Rugged. Connected. Deployable.

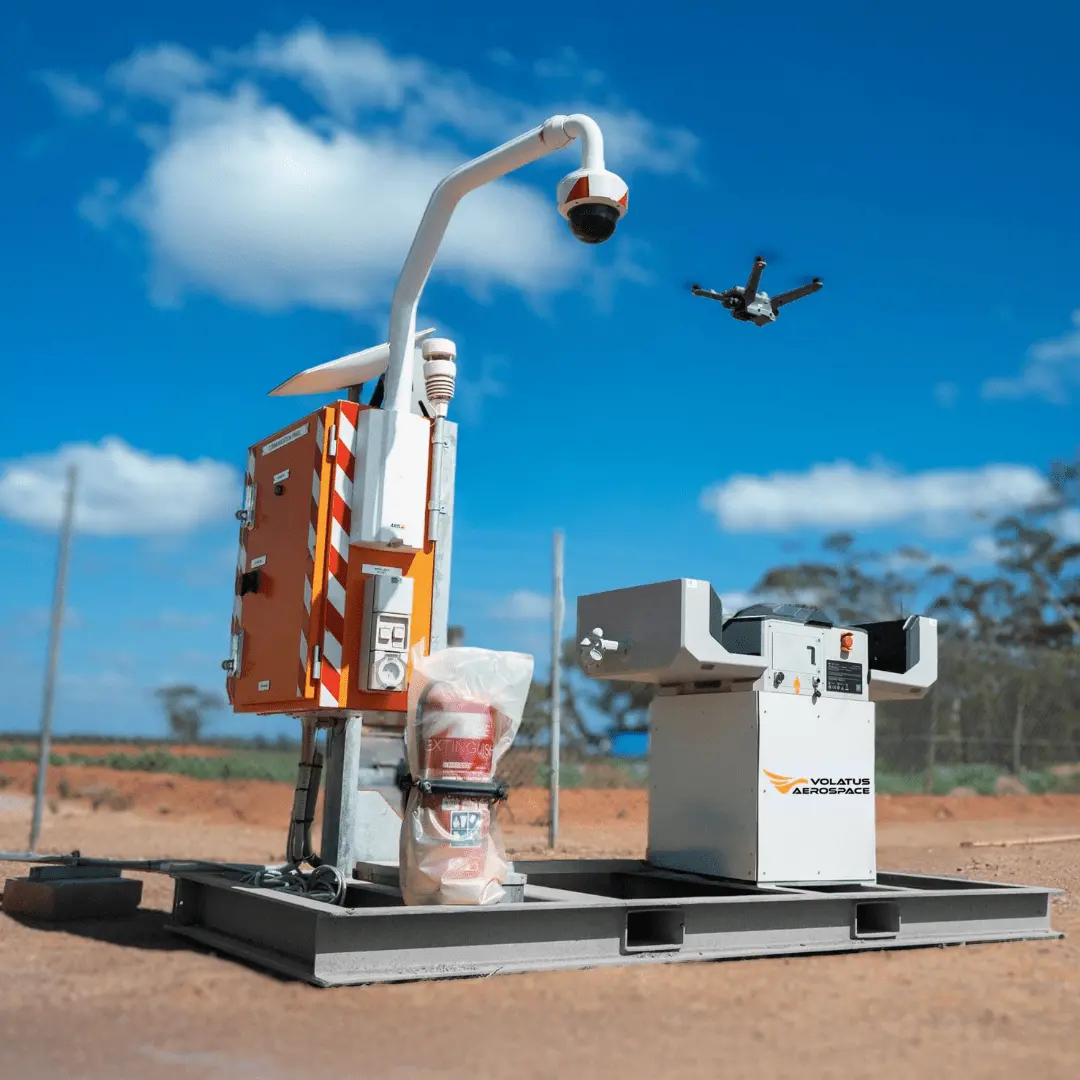

The Volatus Aerospace Sentinel Dock V1 is a rugged, all-in-one solution designed for autonomous drone deployment in real-world conditions. Featuring the Dock 3 paired with DJI Matrice 4D / 4DT drones, Sentinel delivers 24/7 operational capability with advanced safety, connectivity, and environmental awareness—ideal for security, inspection, emergency response, and more.
Features
- Dock 3 + Matrice 4D / 4DT Drones: All-weather, autonomous operations with extended flight range and versatile payload support.
- Steel Skid Platform: Transportable, industrial-grade mount built for durability and rapid deployment.
- Comms & Power Panel: Integrated Ethernet, Wi-Fi, and Cellular connectivity—fully Starlink-ready for remote missions.
- 360° PTZ Camera: Delivers live, high-resolution situational awareness with full panoramic coverage.
- Weather Station: Monitors real-time local environmental conditions to support safe and optimized flight operations.
- Fire Extinguisher: Built-in safety system designed to detect and suppress fire hazards within the dock.
Use Case
- Security & Surveillance
- Infrastructure & Construction
- Energy & Utilities
- Mining & Heavy Industry
- Agriculture & Forestry
- Public Safety & Emergency Response
- Remote Asset Monitoring (Rural, Harsh Environments)
- Smart Cities / IoT Integration
Additional Add-Ons
- HVAC Unit – Cooling for extreme climates.
- ADS-B Receiver – Crewed aircraft awareness.
- Parachute System – ASTM-certified for risk mitigation.
- Off-Grid Power – Solar or hybrid generator options.
Sentinel is engineered for autonomy, safety, and reliability—so your team can focus on the mission, not the launch.
Specifications
table { >
Mechanical & Functional
| Maximum Payload Capacity | ≤ 20 kg |
| Landing Accuracy | ±10 cm |
| Charging Method | Contact-based / Wireless |
Electrical
| Power Input | AC 100–240V, 50/60Hz |
| Peak Power Consumption | Max 260W |
| Battery Backup | Built-in UPS |
| Surge Protection | Supported |
Environmental
| Operating Temperature Range | -20°C to +55°C |
| Ingress Protection Rating | IP56 |
| Wind Resistance | Supports takeoff/landing in up to |
| Beaufort level 5 wind | |
| Humidity Tolerance | 10% to 95% RH (non-condensing) |
Telecommunication
| Wire Communication | IEEE 802.3 LAN (Local Area Network), |
| WAN backhaul, enterprise networks | |
| Terrestrial Wireless | LTE (4G/5G, cellular |
| Satellite Wireless | GEO, MEO, LEO satellite systems |
| Security | Firewall, VPN, Encrypted Communication |
Smart Features
| Unattended Operation | Self-recovery from power/network loss |
| OTA Upgrade Support | Remote update capabilities |
Sensor
| Surveillance | PTZ Camera | |
| Fault Sensors | Power outage, temperature/humidity | |
| sensors |
Fire Suppression
| Fire Extinguisher | Class D Fire Extinguisher |
Additional Information
| Mounting Options | Ground anchoring / Rooftop / Mobile stand |
| Warranty | 1-year standard, optional 5-year extended |
| warranty |
table {>collection.
