CZI TK3 Tethered Power Supply with ML200 Adaptive Matrix Lighting Kit

Description

The CZI TK3 Tethered Power System with ML200 Matrix Light Set has been meticulously engineered to optimize size and weight, making it a perfect fit for your DJI drone operations. The system converts 220V AC power into 400V DC high voltage, which is then transmitted to the drone via a high-performance nickel alloy power supply cable. This ensures your UAV can achieve an impressive 24 hours of uninterrupted flight time.

Used in tandem with the ML200 Matrix lights this power system becomes an indispensable tool for long-duration and large-area emergency lighting and monitoring in complex scenarios.

Features:

• Extended Flight Capability: Enables drones to achieve 24-hour uninterrupted flights, ideal for prolonged missions.
• Lightweight and Convenient: Optimized design for easy transportation and setup, ensuring rapid deployment in the field.
• High-Performance Power Transmission: Utilizes a high-quality nickel alloy cable for efficient power delivery.
• Wide Compatibility: Works seamlessly with DJI M30 Series, and DJI M350 RTK drones.
• Versatile Use Cases: Can be used with various payloads, enhancing the drone’s operational flexibility.

Compatibility

DJI Matrice 30

DJI Matrice 350

In the Box

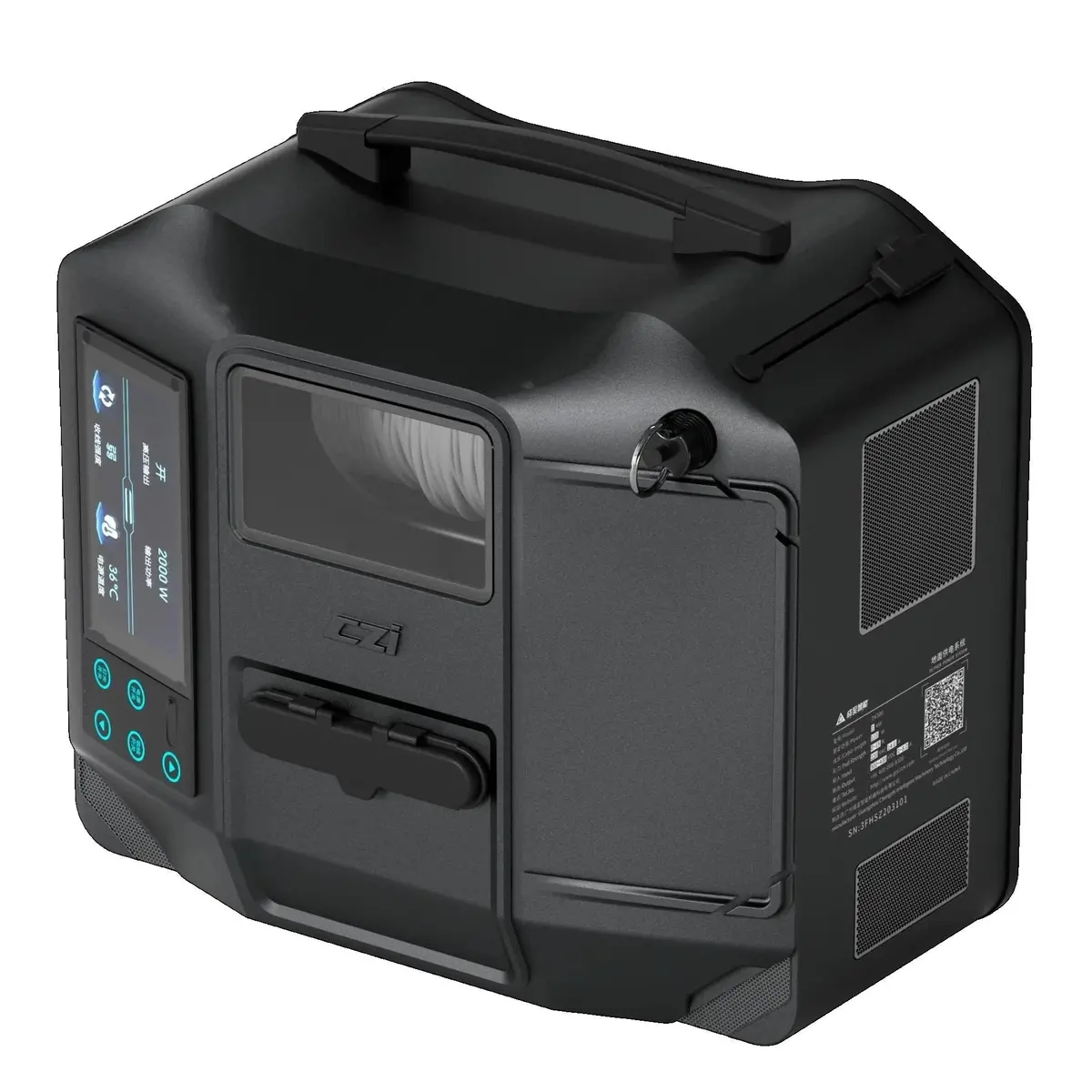

1 – CZI TK3 Tethered Station

1 – 80m (~260ft) Power Distribution Cable

1 – Detachable Stand

1 – CZI ML200 Matrix Light Set

Specifications

Voltage:

• TK3 Ground End:
  • Input Voltage: 90-26V
  • Output voltage: 40V
• TK3-M30 Drone End:
  • Input Voltage: 400V

Dimensions:

• TK3 Ground End:  14.01 x 12.20 x 9.015″ (356 x 310 x 229mm)
• TK3-M30 Drone End:  5.94 x 2.33 x 3.18″ (150.9 x 59.4 x 81mm)

Weight:

• TK3 Ground End:  <16.53 lbs (7.5kg)
• TK3-M30 Drone End:  <11.46 oz (325g)
