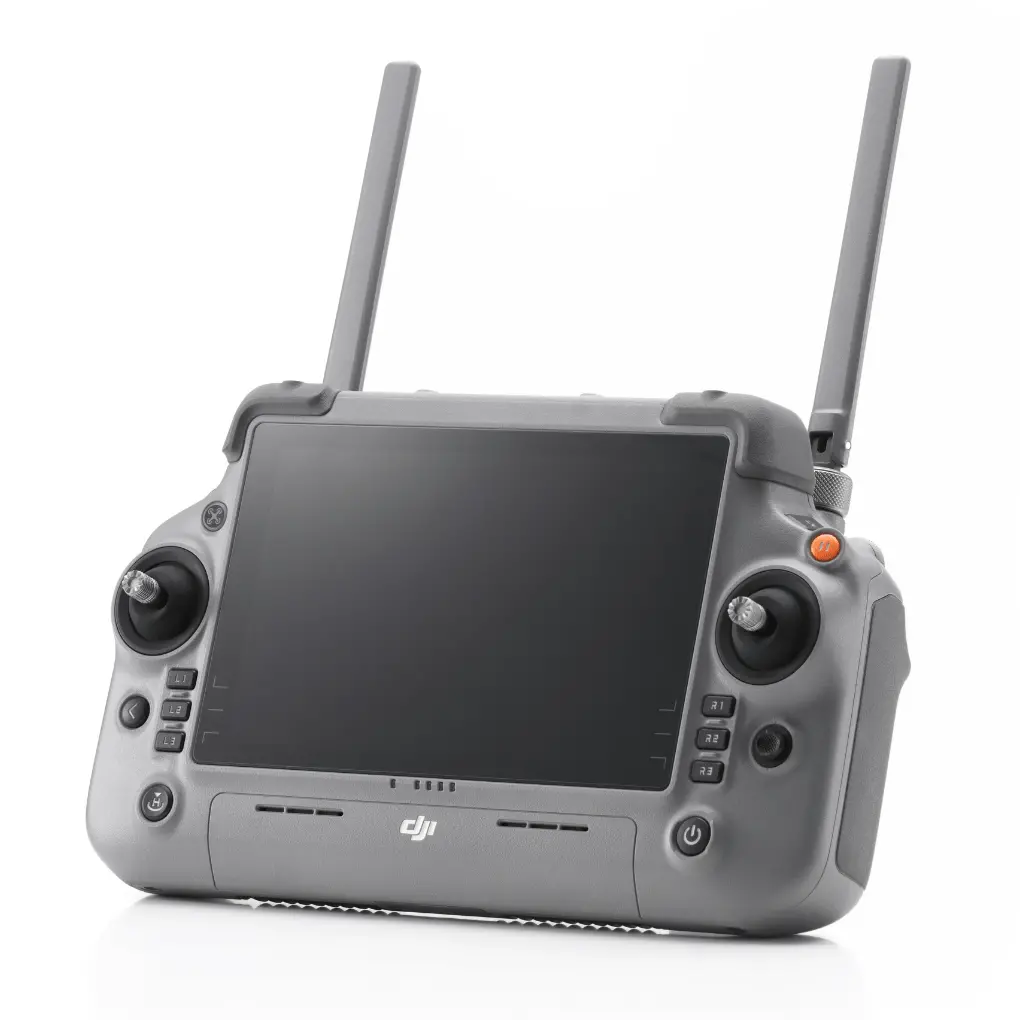

DJI Matrice 4 RC Plus 2 Smart Remote Controller

Description

DJI RC Plus 2 Enterprise Remote Controller for the Matrice 4 Series is equipped with a high-bright display, ensuring clear visibility even under strong sunlight. Built for durability, the controller has an IP54 protection rating and operates in temperatures from -4°F to 122°F.

With the powerful O4 Enterprise video transmission, a built-in high gain antenna array, and support for both SDR and 4G hybrid transmission, the RC Plus 2 Enterprise provides a stable and smooth video feed in both urban and mountainous environments.

Features

• Clear visibility in strong sunlight
• IP54-rated dust and water resistant
• Operates from -4°F to 122°F
• O4 Enterprise Transmission for stable, smooth video feed
• Supports SDR and 4G transmission
• Enhanced signal strength

Compatibility

DJI Matrice 4 Series

In the Box

1 – DJI RC Plus 2 Enterprise Remote Controller

Specifications

OcuSync

• Operating Frequency Range:  5.150-5.250 GHz; 5.725-5.850 GHz
• Transmitter Power (EIRP):
  • 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  • 5.1 GHz: <23 dBm (FCC/CE)
  • 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)

Wi-Fi

• 802.11 a/b/g/n/ac/ax
• Operating Frequency Range:  2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz
• Transmitter Power (EIRP)
  • 2.4 GHz:  <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  • 5.1 GHz:  <26 dBm (FCC), <23 dBm (CE/SRRC/MIC)
  • 5.8 GHz:  <26 dBm (FCC/SRRC), <14 dBm (CE)

Bluetooth

• Bluetooth 5.2
• Working frequency:  2.4000-2.4835 GHz
• Transmitter Power (EIRP):  <10 dBm

General

• Model:  TKPL2
• Battery Type:  Li-ion (6500 mAh @ 7.2 V)
• Chemical System:  LiNiCoAlO2
• It is recommended to use USB-C chargers with maximum rated power of 100W
• Rated Power:  12.5 W
• GNSS:  GPS + Galileo + BeiDou
• Video Output Port:  HDMI Type-A
• Operating Temperature:  -4° to 122° F (-20° to 50° C)
• Storage Temperature
  • Within one month:  -22° to 113° F (-30° to 45° C)
  • One to three months:  -22° to 95° F (-30° to 35° C)
  • Three months to one year:  -22° to 86° F (-30° to 30° C)
• Charging Temperature:  41° to 104° F (5° to 40° C)
