Description

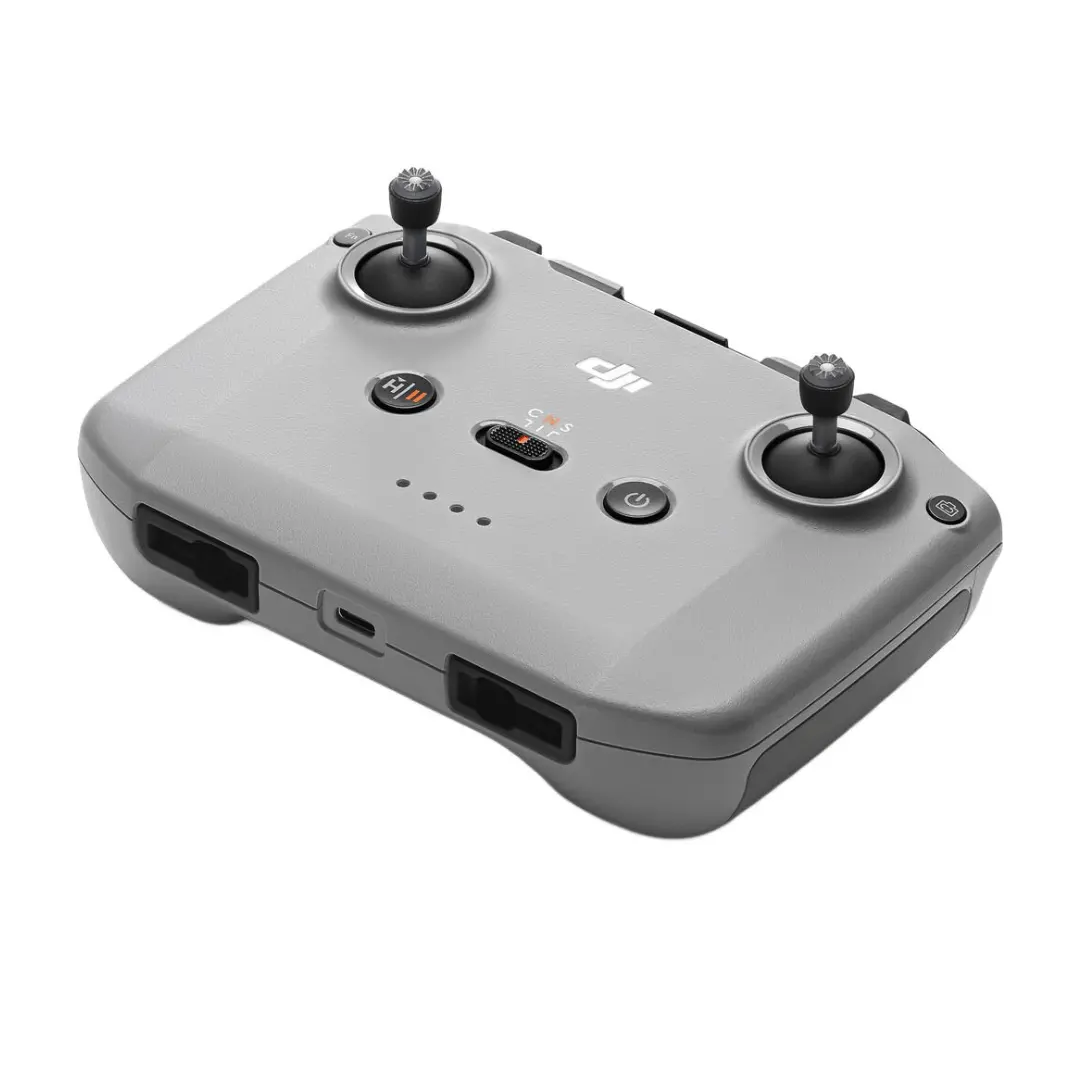

The DJI RC-N3 Remote Controller offers a more intuitive piloting experience when combined with a compatible DJI drone, such as the DJI Neo. The controller accepts any smartphone, up to 7.1″ long, 3.4″ wide, and 0.4″ thick, equipped with the DJI Fly App. The controller transmits piloting information using 2.4 and 5.8 GHz dual-band frequencies and receives an HD video feed from the aircraft to display on the phone’s screen.
The included cables support both lightning and USB-C-compatible phones. On a full charge the RC-N3 can operate up to 3.5 hours, or up to 1.5 hours if its internal battery is used to power an inserted phone.
Features
- Works with Smartphone & DJI Fly App
- 2.4 & 5.8 GHz Dual-Band Transmission
- Displays HD Video Feed on Phone Display
- Up to 3.5 Hours of Operation
Compatibility
DJI Mini 4 Pro
DJI Mini 5 Pro
DJI Neo
DJI Neo 2
In the Box
1 – DJI RC-N3 Controller
1 – USB-C RC Cable
1 – Lightning RC Cable
Specifications
General
| Supported Smartphone Sizes | 7.1 x 3.4 x 0.4″ / 18.0 x 8.6 x 1.0 cm (L x W x H) |
| Run Time | Without Charging Any Mobile Device: Up to 3.5 Hours When Charging a Mobile Device: Up to 1.5 Hours |
| Charging Time | Approximately 2 Hours |
| Temperature | Charging Temperature: 14 to 104°F / 5 to 40°C |
Wireless
| Mobile App Compatible | Yes: Android & iOS App Name: DJI Fly |
| Operating Frequency | 2.400 – 2.4835 GHz 5.170 – 5.250 GHz 5.725 – 5.850 GHz |
| Transmission | Power (EIRP) (2.4 GHz): (FCC) <33 dBm, (CE/SRRC/MIC) <20 dBm Power (EIRP) (5.1 GHz): (CE) <23 dBm Power (EIRP) (5.8 GHz): (FCC) <33 dBm, (CE) 14 dBm, (SRRC) <30 dBm |
Power
| Power Source | Battery (Built-In) |
| DC Input Power | 5 VDC at 2 A |
| Battery Capacity | 2600 mAh |
Environmental
| Operating Temperature | 14 to 104°F / -10 to 40°C |
Physical
| Dimensions | 5.9 x 4.1 x 1.8″ / 150 x 104.2 x 45.2 mm |
| Weight | 11.3 oz / 320 g |
