Inspired Flight GS-One Ground Control Station

Description

 Inspired Flights GS-ONE Ground Control Station | All-in-One NDAA-Compliant GSC

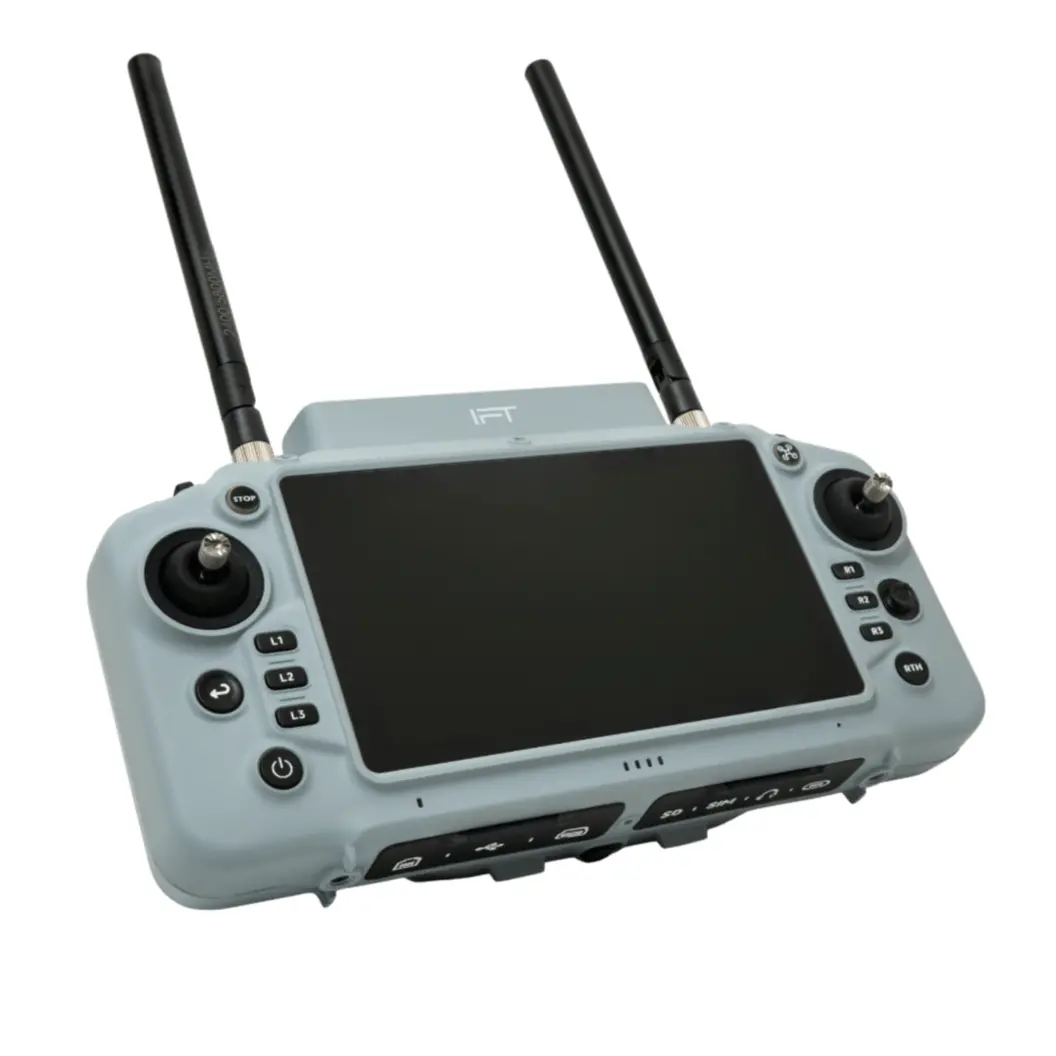

The GS-ONE is Inspired Flight’s next-generation handheld ground control station, purpose-built for mission-critical performance in the field. Designed for the IF800 Tomcat and IF1200 platforms, GS-ONE gives operators an intuitive, high-visibility interface and powerful command over every mission.

With a glove-compatible 7” touchscreen rated at 2000 NIT brightness, GS-ONE delivers a sunlight-readable experience in any environment. Pilots receive real-time video, telemetry, and aircraft control through a built-in 2.4 GHz NDAA-compliant radio, offering up to 6 miles of range. Cellular LTE, WiFi 6, and Bluetooth 5.2 ensure reliable connectivity wherever your mission takes you.

Engineered for long days in the field, the GS-ONE includes tool-less hot-swappable batteries offering up to 5 hours of runtime per pack. Running Android 14 and powered by a Qualcomm QCS6490 processor, GS-ONE features 8 GB of RAM and 128 GB of internal storage, delivering responsive performance across Inspired Ground Control and third-party apps like UGCS or QGroundControl.

With an IP55 rating, programmable buttons, onboard GNSS, and versatile I/O (HDMI, Ethernet, USB, Micro SD, SIM), the GS-ONE empowers pilots with the confidence and control needed for demanding commercial, utility, and public safety operations.

Inspired Flight GS-ONE | Built for the Field, Ready for the Future

Compatibility

IF800 TOMCAT:  Not Retrofit-Compatible

Due to earlier design specifications on the IF800 TOMCAT, retrofitting existing aircraft to support the GS-ONE is not possible. The radio hardware required for GS-ONE operation cannot be accommodated in legacy IF800 airframes.

What You Should Know:

• Only newly manufactured IF800s are built with an internal structure that supports a GS-ONE radio configuration. Customers interested in using the GS-ONE with the IF800 will need to purchase a newly configured IF800 unit.

IF1200A:  Retrofit Available

The IF1200A can be retrofitted to support the GS-ONE. While this retrofit is possible, it requires specific hardware integration and setup that may vary depending on the system.

What You Should Know:

• Retrofitting the IF1200A is a custom service and will include hardware installation, firmware configuration, and radio pairing.
• Pricing, lead time, and installation logistics will depend on your current system and configuration.

In the Box

1 – Inspired Flight GS-ONE Ground Control Station

Specifications

General

• Size:  29 x 18 x 8 cm (11.3 x 7.0 x 3.2 in)
• Weight:  1.80 kg (3.9 lbs)
• Display:  7” 1080P LCD, 2000 NIT brightness, touchscreen
• Operating System:  Android 14
• Processor:  Qualcomm QCS6490
• Memory:  8 GB RAM, 128 GB storage

Battery & Power

• Runtime:  4–5 hours
• Battery Type:  2S 10,400mAh, hot-swappable
• Charging:  USB-C PD2.0, full charge in <3 hours

Connectivity

• Cellular:  4G LTE, CAT 7
• WiFi:  802.11 a/b/g/n/ac/ax (2.4GHz)
• Bluetooth:  v5.2
• Radio:  NDAA Complaint 2.4 GHz, up to 6.2 miles range

I/O & Interfaces

• USB-A 2.0, USB-C 2.0
• Full-size HDMI
• RJ-45 Ethernet
• 3.5mm Audio Jack
• SIM Card Slot
• Micro SD (UHS-1 Grade 3)

GNSS Support

• GPS, GLONASS, Galileo, QZSS, SBAS

Environmental

• IP Rating:  IP55
• Operating Temp:  0°C to 45°C (32°F to 113°F)
